INTRODUCING STANDARD SAMPLES FOR ATOMIC FORCE MICROSCOPY
Atomic force microscopy (AFM) is a microscopic method for visualization of surfaces with high-resolution and for studies of local materials’ properties.
3 minutes 20 seconds
Phoenix Software How to Use
The primary idea of the new controller development was boosting the functionality of scanning probe microscopes. MultiMode and Dimension (Bruker Corp) are the most popular instruments in research laboratories worldwide. Mechanical and functional designs of the microscopes have proved their unbeatable operation for 20+ years, yet the overall performance of these devices became outdated as the means of electronic and software instrument control have substantially advanced. Now, this shortcoming is overcome with the introduction of the “Phoenix” controller made by SPM Labs.
In the development of the controller the initial intention has been extended and the flexible design of the “Phoenix” allows its interfacing with other commercial and homemade microscopes. The implementations of FPGA-based digital control, high-speed data acquisition capabilities, and software innovations offer superb AFM functionality.
By combining the FPGA-based “Phoenix” controller with their microscopes, a user will have access to 5 major AFM modes. They include Contact Mode (CM), resonant oscillatory modes: Amplitude Modulation with Phase Imaging – AM-PI (tapping mode), Amplitude Modulation with Frequency Imaging (AM-FI), Frequency Modulation with Amplitude Imaging (FM-AI), and non-resonance oscillatory mode – Dynamic Contact Mode (D-CM). The latest addition is Scanning Thermal Noise Microscopy, which is based on tracking of no-excitation contact resonances. All these modes have a large number of off-springs dedicated to quantitative studies of mechanical, electrical, thermal, and other properties.
*Imaging
*AM-PI
*AM-FI
* FM-AI
* KPFM AM/PM/FM
* Contact Mode
* PFM
* STM
* ONR
Quantitative AFM methods of measuring local mechanical and electric properties are based on knowing the probe characteristics and microscope performance, which is a non-trivial issue in existing scanning probe microscopes. We were not satisfied with the existing tools to do this, so we have developed the Dynamic Cantilever Calibrator to measure the spring constant and inverse optical sensitivity. This accessory also serves as a valuable diagnostic tool for measurements of the instrument noise floor (in fm/√Hz) and pre-amplifier frequency response in the broad frequency range. The current version of the Dynamic Cantilever Calibrator is for use with MultiMode*™ and Dimension*™ scanning probe microscopes.
* MultiMode is Trademark of Bruker
© SPM Labs LLC.
Products

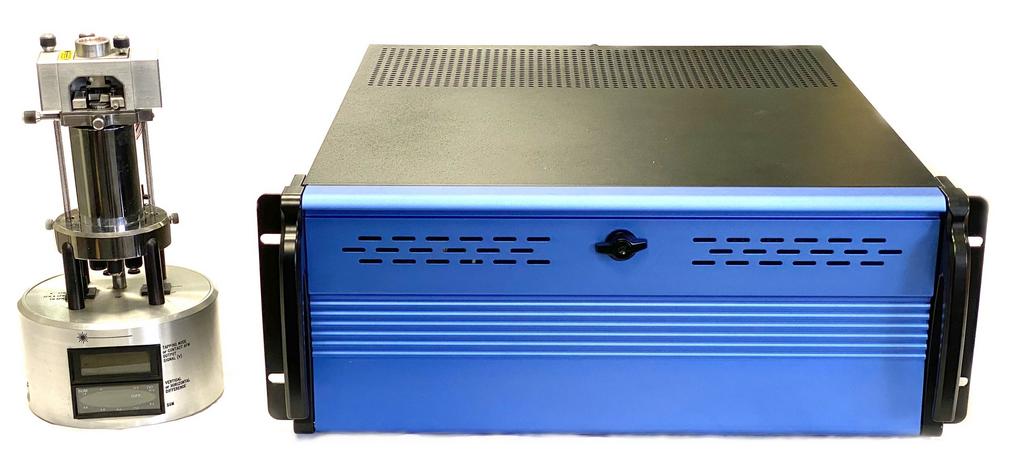

The DCC is a tool to quickly and accurately calibrate the spring constant of the cantilever and the inverse optical sensitivity without touching the sample. For use on Bruker/Veeco/DI MultiMode and Dimension Microscopes.
4 minutes 41 seconds
Advanced SPM Controller “Phoenix”
2 minutes 51 seconds
